Merida

Merida eOne-Sixty 500 SE inGreen/Black

£4,400.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

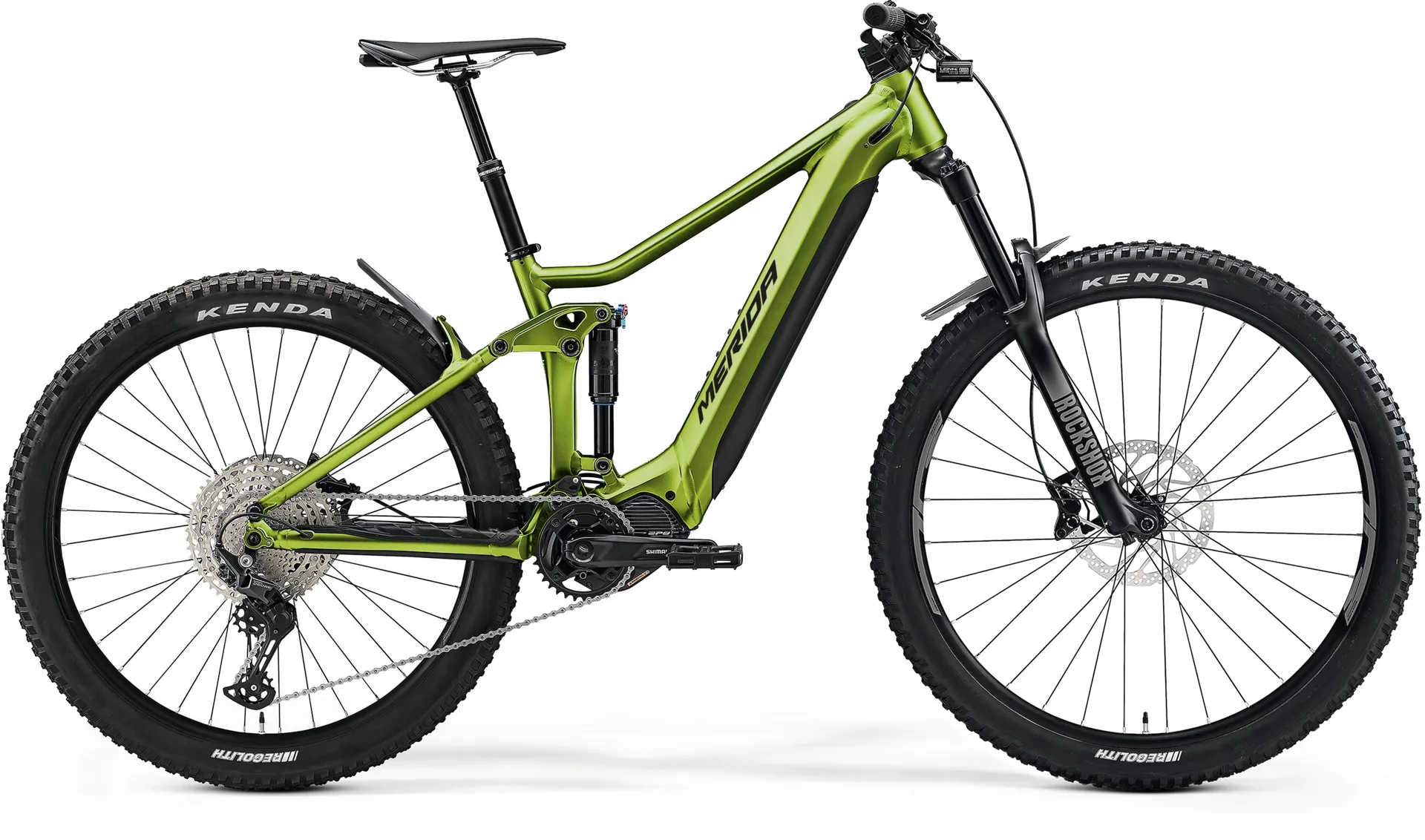

Merida eOne-Sixty 500 SE inGreen/Black

Season:2024

Brand:Merida

Code:P-P705

Highlights:
  • Lightweight aluminium frame
  • Shimano Steps EP6 85Nm motor with Shimano 630Wh internal battery
  • RockShox 35 Gold RL Air fork and RockShox Deluxe Select+ rear shock
  • SRAM DB8 4 piston hydraulic disc brakes
  • SRAM NX Eagle 12 speed
Aluminium full suspension eBike with 85Nm Shimano Steps EP6 motor and Shimano 630Wh battery. RockShox Suspension, SRAM hydraulic brakes and SRAM NX Eagle 12 speed drivetrain

The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry. To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.

Technical Information
FRAME
  • Lite III - Hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
MOTOR
  • Shimano Steps EP6; 85Nm
BATTERY
  • Shimano EN806; 630Wh internal battery
BATTERY CAPACITY
  • 630Wh
EBIKE DISPLAY
  • Shimano SC-EN600
CHARGER
  • Shimano EC-E6002; 2A Charging current
POWER BUTTON
  • CAP-045, Merida Power Button
MODE SWITCH
  • Shimano SW-EN600-L
SHOCK
  • RockShox Deluxe Select+; platform
FORK
  • Rock Shox 35 Gold RL; Air; 160mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.8"
GEARS
  • 12
SHIFTERS
  • Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed
REAR DERAILLEUR
  • SRAM NX Eagle
BOTTOM BRACKET
  • Part of Shimano Steps motor
CHAIN
  • SRAM SX Eagle
CHAINSET
  • SAMOX EMA04; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
CASSETTE
  • SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
BRAKE LEVER
  • SRAM DB8
FRONT BRAKE
  • SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
REAR BRAKE
  • SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
GRIP
  • Merida Expert EC
HANDLEBAR
  • Merida Expert eTR; 780mm wide; 20mm rise
STEM
  • Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET
  • Merida-8152
PEDAL
  • VP Components - VPE-537
SADDLE
  • Merida Comp SL with V-mount
SEAT POST
  • JD Components; 30.9mm diameter; in-line; XS/S 100mm - M/L 125mm - XL 150mm seat post travel
WHEEL SIZE
  • 29" / 27.5"
RIMS
  • Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included)
SPOKES
  • Black stainless
FRONT HUB
  • Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
REAR HUB
  • Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE
  • Kenda Regolith; 29" x 2.4"; wire bead
REAR TYRE
  • Kenda Regolith; 27.5" x 2.6"; wire bead
COLOUR
  • Green/Black
SEASON
  • 2024
FRONT LIGHT
  • Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT
  • USB rear Light CG-214RG
OTHER
  • Shiamno Satellite charging port; EW-CP100
