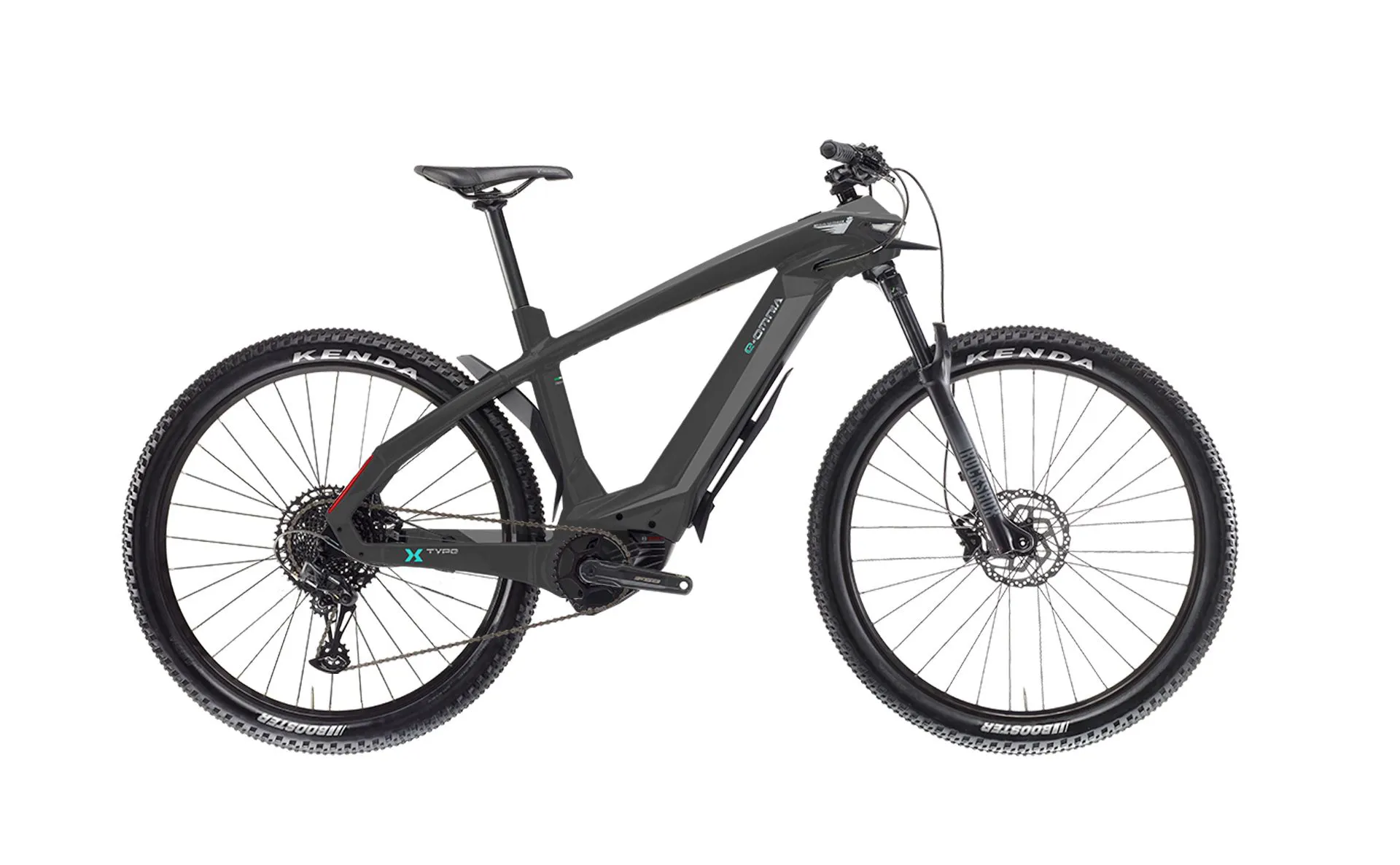

| FRAME | E-MTB OMNIA X Type HT Alu 29"
BIANCHI 120mm front suspended, 1.5" tapered HT, seatpost diam.31,6mm, integrated seat clamp, PM 180mm dropout thru axle 12x148mm, internal cable
routing inside DT, sizes 43,48,53 (MD; LG; XL) - Set dropout (sx+dx), TA 148mm external derailleur + SRAM UDH |
| HEADSET | NO.55R/558 1.5" Anod Black w/FSA logo w/TH-874-1 Stainless bolt |
| FORK | Rock Shox Recon Silver RL 29B" Solo Air, 120mm, Extl rebnd, MOTION Control Damper, 1.1/5" Alu HT, 15x110 BOOST, 32mm stanchions, E-MTB Decal,
PM 160mm disc mount, Maxle Stealth, 42mm offset
+ SKS set 11564 stay mounting clamps d.40 to d.43 |
| SHIFTER | SX EAGLE 1x12 trigger single click for e-bike |
| REAR DERAILLEUR | SX EAGLE 12s long cage |
| CRANKSET | FSA CK-762/IS Forged Alu crank 165 mm ISIS black, FSA ISIS CrMo M15 crank arm bolts ML054 , EAGLE 34T CHAINRING direct mount |
| BOTTOM BRACKET | included in the motor |
| CHAIN | SX EAGLE, 12sp, 126 link |
| CASSETTE / FREEWHEEL | PG1210, 12sp, 11-50T |
| BRAKE | MT4100 w/rear J-Kit only, Shimano logo, resin pad, w/SM-MA-F180P/P2 adapter for front |
| DISC ROTOR | SM-RT10 CL 180mm front & rear, CenterLock w/o CL ring for front only, for resin pad only |
| FRONT HUB | HB-MT400-B for Center Lock, 32holes, thru axle 15X110mm |
| REAR HUB | FH-MT400-B for CenterLock, 32h 12X148mm BOOST, 8/9/10/11 speed body |
| RIM/WHEELSET | Velomann ST30 TCS 2.0 29”, 30mm 29”, Pre Ano Black, 489g, 32 hole drilling, Disc Only, Black Anodized, Single Eyelets, PV drilled Sleeved Joint |
| TIRE | Kenda Booster 29x2.6, 30tpi |
| STEM | Velomann ST97A +/-0°, 1,1/8 x Ø31,8mm, 55mm for 15,17,19,21" w/ decals |
| HANDLEBAR | Velomann Rise MTB479A, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise,DB Alloy 6061-T6, sandblast anodized w/laser graphics |
| GRIP / TAPE | Rock T-GP34 single lock grip , TPR, plastic inner body, aluminium clamp- black color |
| SEATPOST | Velomann SP-7019, lenght 350mm-17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft + alloy head |
| SADDLE | Velomann 2058DRN, 140mm width, Steel rails black, PVC soft touch 7723 black color w/Black on Black graphics |
| PEDALS | NW-91K, PP black body, w/ED steel cage, Boron ED black axle, BS reflector w/toe-clip & strap, w/instruction sheet |
| FRONT LIGHT | BLS Front incl HIGO MICRO A cable 785mm Female connector BLS cable 250mm w/MALE connector . Custom front light based on Axendo 40 model |
| REAR LIGHT | BLS REAR S-SIDE incl HIGO MICRO A cable 755mm Female connector
BLS REAR C-SIDE incl HIGO MICRO A cable 655mm Female connector
1 cable 50mm MALE connector, 4 cables 50mm FEMALE connector
BLS Switch cable 1105mm with FEMALE connector
Custom rear light 2pcs |
| MOTOR UNIT | 1) New Performance line CX Cruise 2) Components Drive unit mounting: - lock ring for BDU4XX - O-ring - screw M8x16 3) Drive Unit speed sensor: - New
Speed sensor slim 800 - disc magnet center lock for slim version - sensor clip holder for slim version - screw for sensor clip holder 4) logo Bezel
Performance line CX 5) PowerTube 625 horizontal BBP290 6) Cable PowerTube 410mm 7) Cable Charging socket PowerTube 340mm 8) Dual battery Y
adapter incl. accessory long 9) Compact charger 2A 10) Charger Power Cable Europe 11) Display Purion Anthracite cable 1500mm 12) light cable front
200mm 13) light cable rear 200mm |
| MUDGUARDS | Mudgard Ant Mid 1.3.3, Mudgard Ant Low 1.3.4 , Mudgard Ant Up 1.3.5, Mudgard Post Up 1.3.6, Mudgard Post Up Low 1.3.7 |
