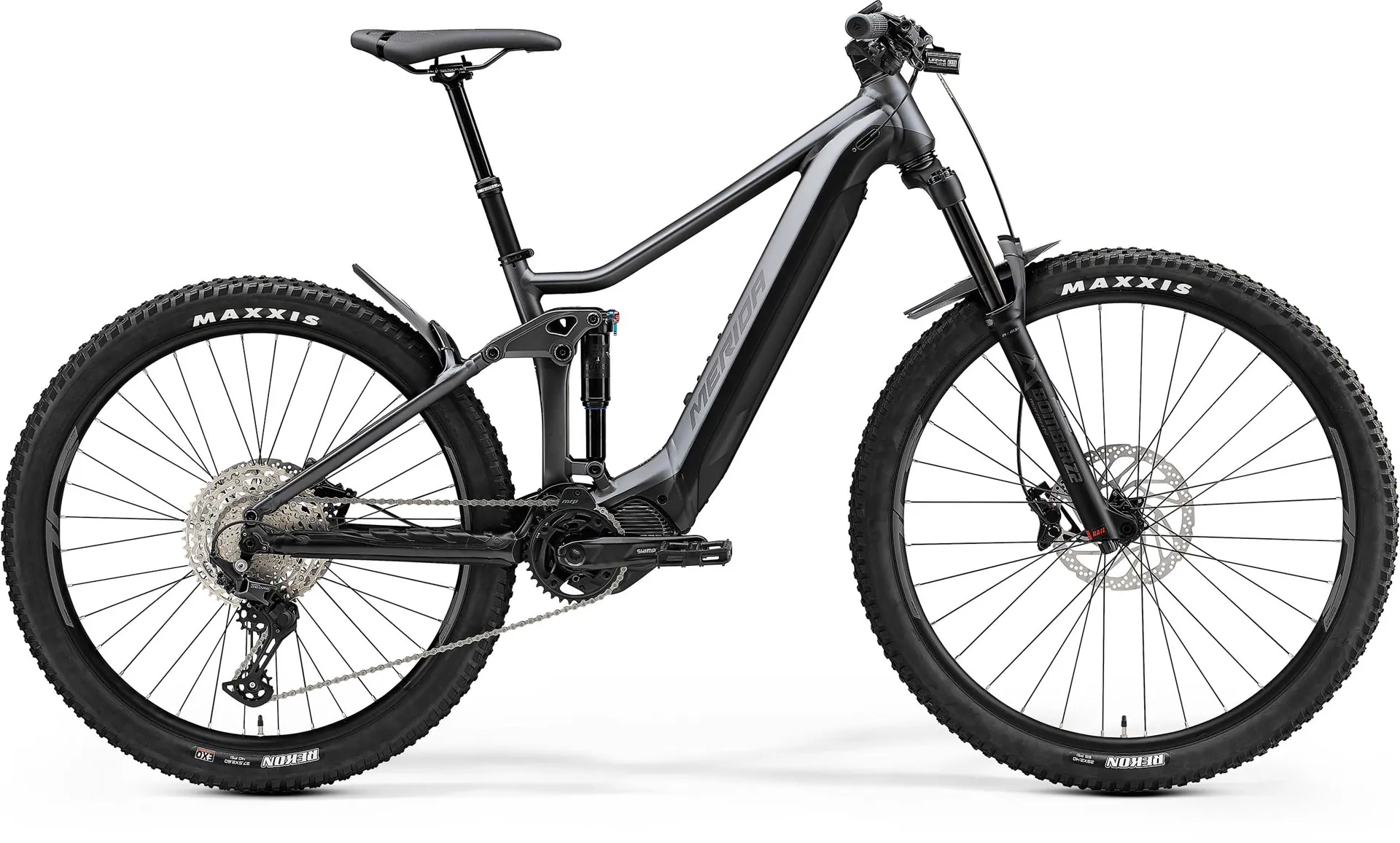

2021 Merida eOne-Forty 500 504Wh Battery Silver 40.5cm SMALL

Season:2021

Brand:Merida

Code:M840

The eone-sixty is the headline grabber of the merida ebike range, for 3 generations it has been winning tests, gathering accolades and generally hogging the limelight! However........ The eone-forty and eone-sixty share exactly the same frame and design features but have different ride characteristics.The shock stroke on the eone-forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach and delivers a slightly steeper head angle. In combination these small changes make the eone-forty more agile and playful, a highly competent climber and perfect for all day riding.The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic rolling over obstacles behaviour yet maximum traction, a 29er front wheel with a 2.5 tyre is combined with a 650b rear wheel, equipped with a slightly wider 2.6 tyre. The perfect combination of precision, playfulness and traction.All eone-forty models use the powerful new Shimano ep8 85nm motor and bigger 630nm battery (with the exception of s frame sizes).Shimano'S e-tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising
Technical Information
  • Frame
    Lite III - Hydroformed 6066 series triple butted aluminium with intergrated battery. Internal cable routing, Smart entry for rattle free running. Aggressive trail geometry delivers 133mm of rear wheel travel
  • Rear Shock
    Suntour RS-Edge-TR-LO-R8-M6; lockout
  • Fork
    Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset
  • Headset
    Merida-8152
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length : 50 mm all sizes
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Calipers
    Front: Shimano M4100; 4 piston hydraulic disc brake with Shimano RT30; 203 mm rotor Rear: Shimano M4100; 4 piston hydraulic disc brake with Shimano RTEM300; 203 mm rotor
  • Tyres
    Front: Maxxis Rekon; 29 x 2.4; wire bead Rear: Maxxis Rekon; 27.5 x 2.6; EXO wire bead
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Comp TR; 29mm inner rim width; Material: aluminium Spokes: Black stainless Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Centerlock Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key
  • Speeds
    11
  • Rear Derailleur
    Shimano Deore RDM5100 11
  • Shift Levers
    Shimano Deore M5100 11
  • Chain
    Shimano CN-HG601-11 speed
  • Cassette
    Shimano M5100; 11-51 teeth; 11 speed
  • Chainset
    Shimano CRE70-B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-537
  • Saddle
    Merida Comp CC; V-mount
  • Seat Post
    Merida Comp TR; 30.9mm diameter; in-line; S 100mm drop - M/L 125mm drop - XL/XXL 150mm drop with Shimano SL -MT500-IL lever
  • Motor
    Shimano E8035; 630Wh battery, Shimano EP8; 85Nm motor
  • Battery Capacity
    504 Wh
  • eBike Display
    Shimano SC-E5003
