Merida eOne-Forty 400 Electric Full Suspension MTB - 504Wh - Small

£4,025.00 £4,150.00 3% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

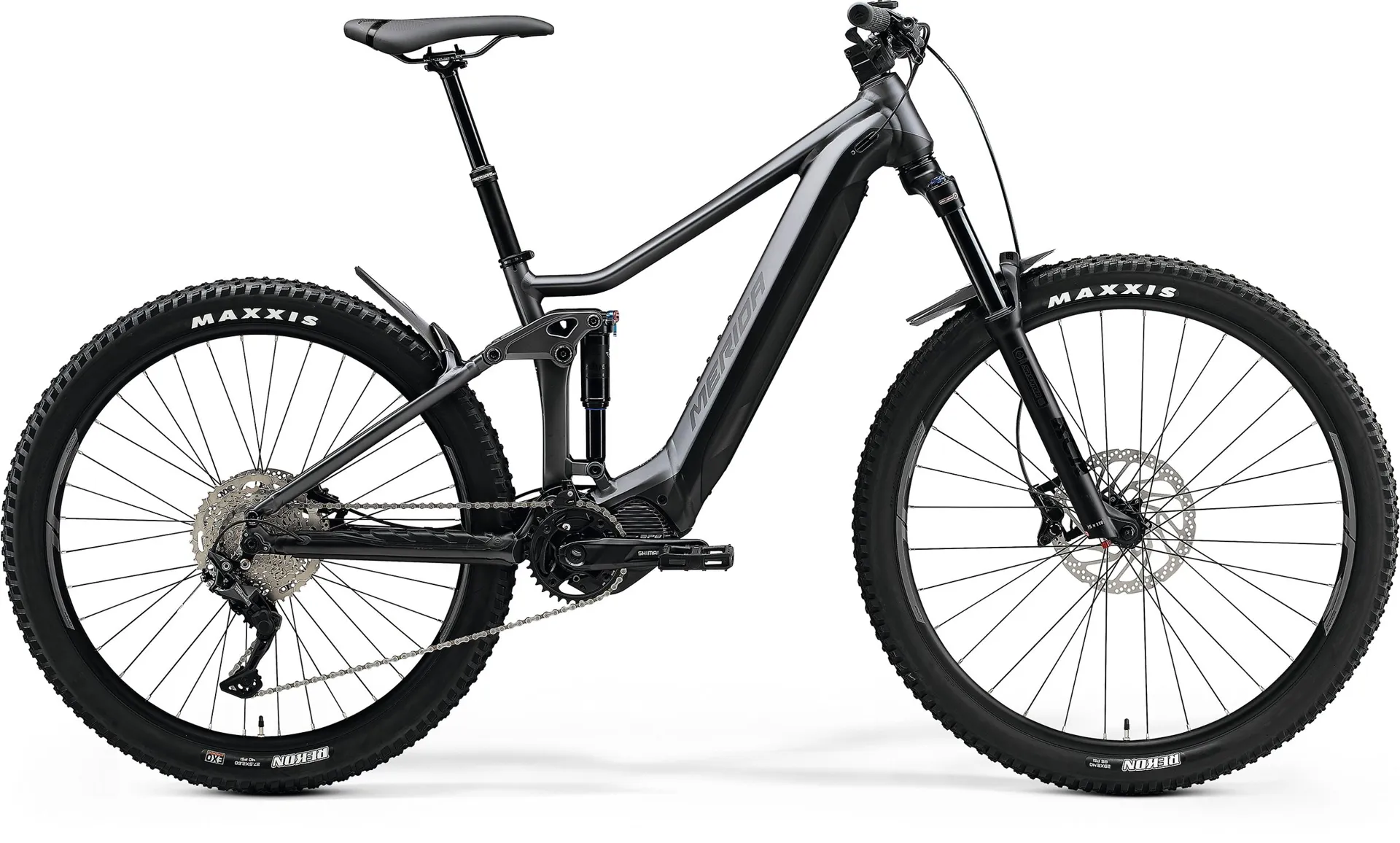

Merida eOne-Forty 400 Electric Full Suspension MTB - 504Wh - Small

Season:2023

Brand:Merida

Code:N818

You don't need to spend a fortune to get a real trail eMTB. Our aluminium frame sleekly integrates a 504 Wh battery and the powerful Shimano EP8 drive unit boosts your riding to the next level.

The eONE-FORTY might be the little sibling to our multiple award and test-winning eONE-SIXTY, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 540Wh integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140 mm of the front wheel and 133 mm of rear-wheel travel offer up control, comfort and real rough terrain capability. The eONE-FORTY’s versatility is boosted even further by the EQ model that comes fully equipped with mudguards, rack, lights and kickstand so it can tackle the mean streets as well as muddy trails.

Please Note: This is the 504Wh version, this only comes in a small frame, 40.5cm

Merida eOne-Forty 400 2022 Key Features:
  • Tough all-aluminium chassis with integrated 540Wh battery
  • Powerful Shimano EP8 drive unit
  • Mixed wheel size setup with 140/130 mm travel split
  • Quality Suntour suspension
  • The wide-range Shimano drivetrain
  • Powerful Shimano hydraulic brakes
Technical Information
  • Frame:Lite III - Hydroformed 6061 double-butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
  • Rear Shock:Suntour RS-Edge-TR-LO-R8-M6; lockout
  • Fork:Suntour XCR34 LOR DS; Air; Boost; 140mm; Tapered; 51mm fork offset; Max. tyre size: 29" x 2.4"
  • Headset:Merida-8152
  • Stem:Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Handlebar:Merida Expert eTR; 780mm wide; 20mm rise
  • Tape/Grip:Merida Expert EC
  • Brake Lever:Shimano M4100
  • Front Brakes:Shimano M42040; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor
  • Rear Brakes:Shimano M4100; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180 mm rotor
  • Rear Derailleur:Shimano Deore RDM5120 10
  • Shifters:Shimano Deore M4100 with Shimano SL -MT500-IL lever
  • Chain:KMC e10s
  • Crankset:Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Cassette:Shimano M4100 11-46 teeth 10 speed
  • Rims:Merida Comp TR; 29mm inner rim width; Aluminium
  • Spokes:Black stainless
  • Front Hub:Shimano MT400-B; 110x15mm; 32 spokes; Center lock
  • Rear Hub:Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Front Tyre:Maxxis Rekon; 29" x 2.4"; Dual; wire bead
  • Rear Tyre:Maxxis Rekon; 27.5" x 2.6"; EXO; wire bead
  • Pedals:VP Components, VPE-537
  • Saddle:Merida Comp SL; V-mount
  • Seatpost:Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL)
  • Motor:Shimano EP8 85Nm
  • Battery:Shimano 540Wh
  • Charger:Shimano EC-E6002 2A charging current
  • Display:Shimano SC-E5003A
